底盘及导轨安装 > DC-DC转换器 33-150W                                                        CHASSIS MOUNT > DC-DC CONVERTERS 33-150W

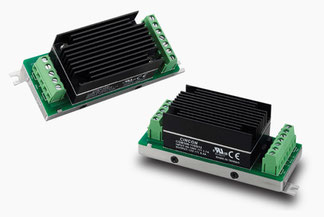

CQB/CQE50-150W-CM/DIN系列

系列        >  DC-DC转换器

产品类别 >  底盘及导轨安装

输入电压 >  24, 48, 110VDC

输出电压 >  3.3, 5, 12, 15, 24, 28, 48VDC

输出功率 >  33-150W

特性        >  33-150W 隔离输出

                   4:1输入范围

                   1/4砖封装

                   底盘/导轨安装

                   带散热器

                                                                                                输入过压保护

                                                                                                输出可调

                                                                                                持续性短路保护

                                                                                                CE标志符合2014/30/EU

                                                                                                安全标准符合 : UL60950-1, EN60950-1, IEC60950-1

                                                                                                UL60950-1符合 : DC模块

                                                                            参考连结 >  CQB/CQE50-150W-CM/DIN系列数据表

型 号 输入电压 (VDC) 输出电压 (VDC)   散热器类型
(可选)
尺寸(mm)
 CQE50W
CQB75W 24 3.3, 5, 12, 15, 24
CQB100W 48   CM : 底盘安装
DIN :导轨安装
M-C448
M-C421
105x40.0x25.0
CQE50W   48
CQB100 100 5, 12, 24
CQB150W 24, 48, 110 12, 24, 28, 48
