底盘及导轨安装 > DC-DC转换器 300W                                                                  CHASSIS MOUNT > DC-DC CONVERTERS 300W

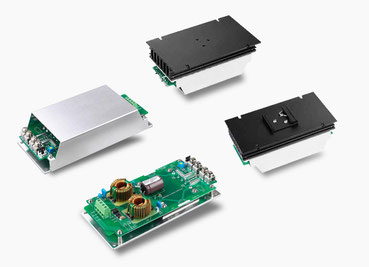

CHB300W-110SXX-CMFC(D) 系列

系列        >  DC-DC转换器

产品类别 >  底盘及导轨安装

输入电压 >  43-160V

输出电压 >  5, 12, 24, 28, 48VDC

输出功率 >  300W

特性        >  效率达90.5%

                   空载低功耗

                   固定开关频率

                   4:1输入范围

                   输出可调

                   过热 、过压保护

                                                                                               遥感控制On/Off

                                                                                               持续性短路保护

                                                                                               冲击振动符合 : EN50155 (EN61373)

                                                                                               安全标准符合 : UL60950-1, EN60950-1,
                                                                                                                        IEC60950-1

                                                                                              UL60950-1 2nd (基本绝缘) 符合DC模块

                                                                                              EMC符合EN50155 : 2007环境特征

                                                                                              内置EMI滤波器

                                                                                              基板冷却

                                                                                              消防和烟雾符合 : EN45545-2

                                                                            参考连结 >  CHB300W-110SXX-CMFC(D)系列数据表

型 号 输入电压(VDC) 输出电压 (VDC) 输出电流 (A) 效率(%) 尺寸(mm)

CHB300W-110S05-CMFC

CHB300W-110S05-CMFD

43-160  5 60 86.5 CMFC:165.00x76.20x38.50
CMFD:165.00x78.60x40.00

CHB300W-110S12-CMFC

CHB300W-110S12-CMFD

12 25 89.5

CHB300W-110S24-CMFC

CHB300W-110S24-CMFD

24 12.5 89

CHB300W-110S28-CMFC

CHB300W-110S28-CMFD

28 10.7 89

CHB300W-110S48-CMFC

CHB300W-110S48-CMFD

48 6.25 90.5
