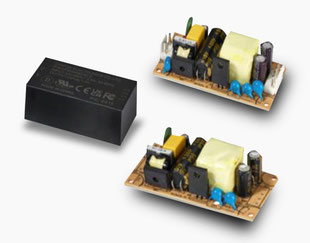

AC-DC开放式电源 36W AC-DC ITE Open Frame Power Supply 36W
CFM36S 系列
系 列 >
产品类别 >
输入电压 >
输出电压 >
输出功率 >
特 性 >
CFM36S
AC-DC开放式电源
90-264Vac
5, 12, 15, 24, 48
36W
通用输入电压 : 90-264VAC
效率达89%
1.5”x 3” 开放式尺寸
Class II: Blank (PCB安装) 与带E (封装)
Class II 或 I: 带T (晶圆片)
空载损耗 <0.1W
安全标准符合: IEC/EN/UL 62368-1 3rd
符合家居安全标准: IEC/EN60335-1
EMC符合EN 55032 Class B及CISPR/
FCC Class B
安全标准符合: IEC/EN 60335-1
工作高度5000m
持续性短路保护
过压保护
参考连结 >
| 型 号 | 输入电压 (V) | 输出电压 (VDC) | 输出电流 (A) | 效率 (%) | 尺寸(mm) |
| CFM36SA050-T | 90-264 | 5 | 6.0 | 85 |
76.20 x 38.10 x 27.94 带T : 76.20 x 38.10 x 25.40 带E : 78.80 x 40.70 x 28.80 |
| CFM36SA120-T | 12 | 3.0 | 88 | ||
| CFM36SA150-T | 15 | 2.4 | 88 | ||
| CFM36SA240-T | 24 | 1.5 | 89 | ||
| CFM36SA480-T | 48 | 0.75 | 89 | ||
| CFM36SB050 | 90-264 | 5 | 6.0 | 85 |
76.20 x 38.10 x 27.94 带T : 76.20 x 38.10 x 25.40 带E : 78.80 x 40.70 x 28.80 |
| CFM36SB120 | 12 | 3.0 | 88 | ||
| CFM36SB150 | 15 | 2.4 | 88 | ||
| CFM36SB240 | 24 | 1.5 | 89 | ||
| CFM36SB480 | 48 | 0.75 | 89 | ||
| CFM36SB050-T | 90-264 | 5 | 6.0 | 85 |
76.20 x 38.10 x 27.94 带T : 76.20 x 38.10 x 25.40 带E : 78.80 x 40.70 x 28.80 |
| CFM36SB120-T | 12 | 3.0 | 88 | ||
| CFM36SB150-T | 15 | 2.4 | 88 | ||
| CFM36SB240-T | 24 | 1.5 | 89 | ||
| CFM36SB480-T | 48 | 0.75 | 89 | ||
| CFM36SB050-E | 90-264 | 5 | 6.0 | 85 |
76.20 x 38.10 x 27.94 带T : 76.20 x 38.10 x 25.40 带E : 78.80 x 40.70 x 28.80 |
| CFM36SB120-E | 12 | 3.0 | 88 | ||
| CFM36SB150-E | 15 | 2.4 | 88 | ||
| CFM36SB240-E | 24 | 1.5 | 89 | ||
| CFM36SB480-E | 48 | 0.75 | 89 |
