AC-DC开放式/关闭式电源 > 医疗AC-DC开放式电源+PFC 300W

AC/DC SWITCHING POWER SUPPLY  > MEDICAL POWER SOLUTION 300W

CFM300M系列

系列        >  AC-DC开放式/关闭式电源

产品类别 >  医疗AC-DC开放式电源+PFC

输入电压 >  AC90-264V

输出电压 >  5, 12, 24, 36, 48V

输出功率 >  300W

特性        >  通用输入电压 : 90-264VAC

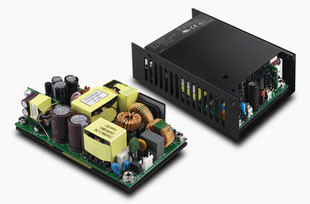

                   300W无外壳

                   医疗认证和ITE认证

                   3”x5”封装

                   工业标准引脚

                                                                                                 PFC符合EN61000-3-2

                                                                                                效率高达94%

                                                                                                符合CISPR/FCC B

                                                                                                远程电压遥感检测

                                                                                                过压保护/过温保护

                                                                                                遥感控制 On/Off

                                                                                                持续性短路保护

                                                                                                ±5%输出电源

                                                                                                12V风扇电源

                                                                                                电源密度达14.1W/Inch 3

                                                                                                符合国际医疗法规 (2MOPP)

                                                                                                符合EN55011 B

                                                                            参考连结 >  CFM300M系列数据表

型 号 输入电压 (V) 输出电压 (VDC) 输出电流 (A)
效率(%) 尺寸(mm)
 CFM300M120   AC90-264  12 16.67 92.5

有外壳 :136.00x87.00x40.40
无外壳 :127.00x76.20x28.10


CFM300M240 24 8.34 93.5
CFM300M360 36 5.56 93.5
CFM300M480 48 4.17 94
待用输出电压
All AC90-264 5 0.6
风扇输出电压
All AC90-264 12 0.5
