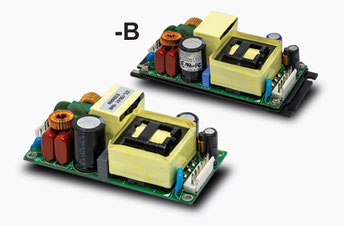

AC-DC开放式电源 150W AC/DC Open Frame Baseplate-cooled Power Supply 150W
CFM150S 系列
系 列 >
产品类别 >
输入电压 >
输出电压 >
输出功率
>
特 性 >
CFM150S
AC-DC开放式电源
90-264VAC
12, 24, 28, 36, 48
150W
通用输入电压 : 90-264VAC
2”x 4”开放式紧凑型
120W自然对流
150W基板冷却
空载功耗<150mW
有源PFC功能
效率高达94%
基板冷却设计
持续性短路保护
符合IEC/EN60335-1/60601-1
EMI安规符合 Class I & Class II
工作高度5000m
参考连结 >
| 型 号 | 输入电压 (V) | 输出电压 (V) | 输出电流 (A) | 效率(%) | 尺寸(mm) |
| CFM150S120 |
90-264 |
12 | 10 | 93 |
101.60x50.80x32.60 -B: 116.80x50.8x34.60 |
| CFM150S240 | 24 | 5 | 94 | ||
| CFM150S280 | 28 | 4.28 | 94 | ||
| CFM150S360 | 36 | 3.33 | 94 | ||
| CFM150S480 | 48 | 2.5 | 94 | ||
| CFM150S120-B | 90-264 | 12 | 12.5 | 93 | |
| CFM150S240-B | 24 | 6.25 | 94 | ||
| CFM150S280-B | 28 | 5.35 | 94 | ||
| CFM150S360-B | 36 | 4.16 | 94 | ||
| CFM150S480-B | 48 | 3.125 | 94 |
