AC-DC开放式电源 130W AC/DC Open Frame Power Supply 130W
CFM130S 系列
系 列 >产品类别 >
输入电压 >
输出电压 >
输出功率 >
特 性 >
CFM130S
AC-DC开放式电源
80-264VAC
12, 24, 36, 48Vdc
130W
通用输入电压 : 80-264VAC
持续性短路保护
效率高达94%

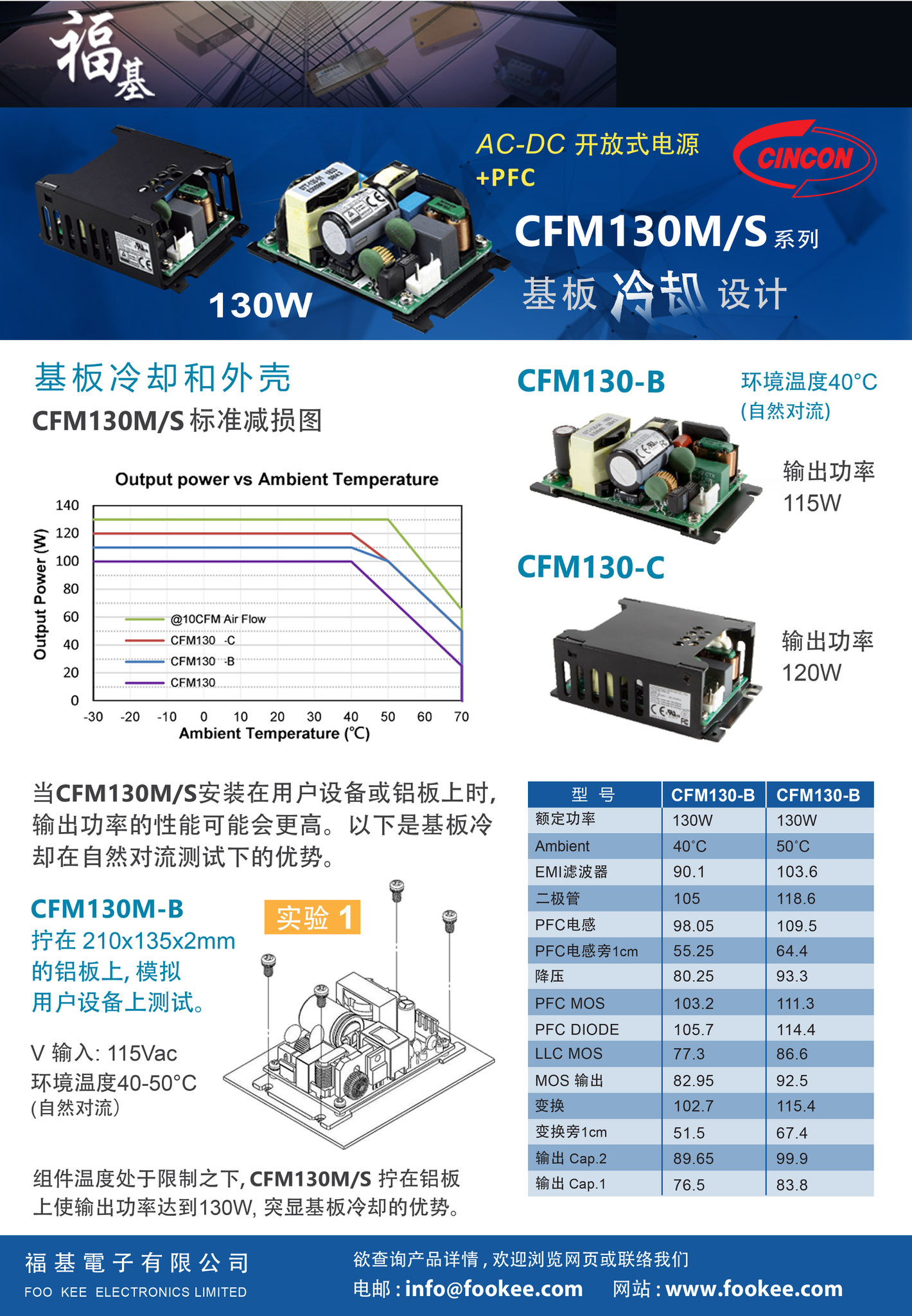

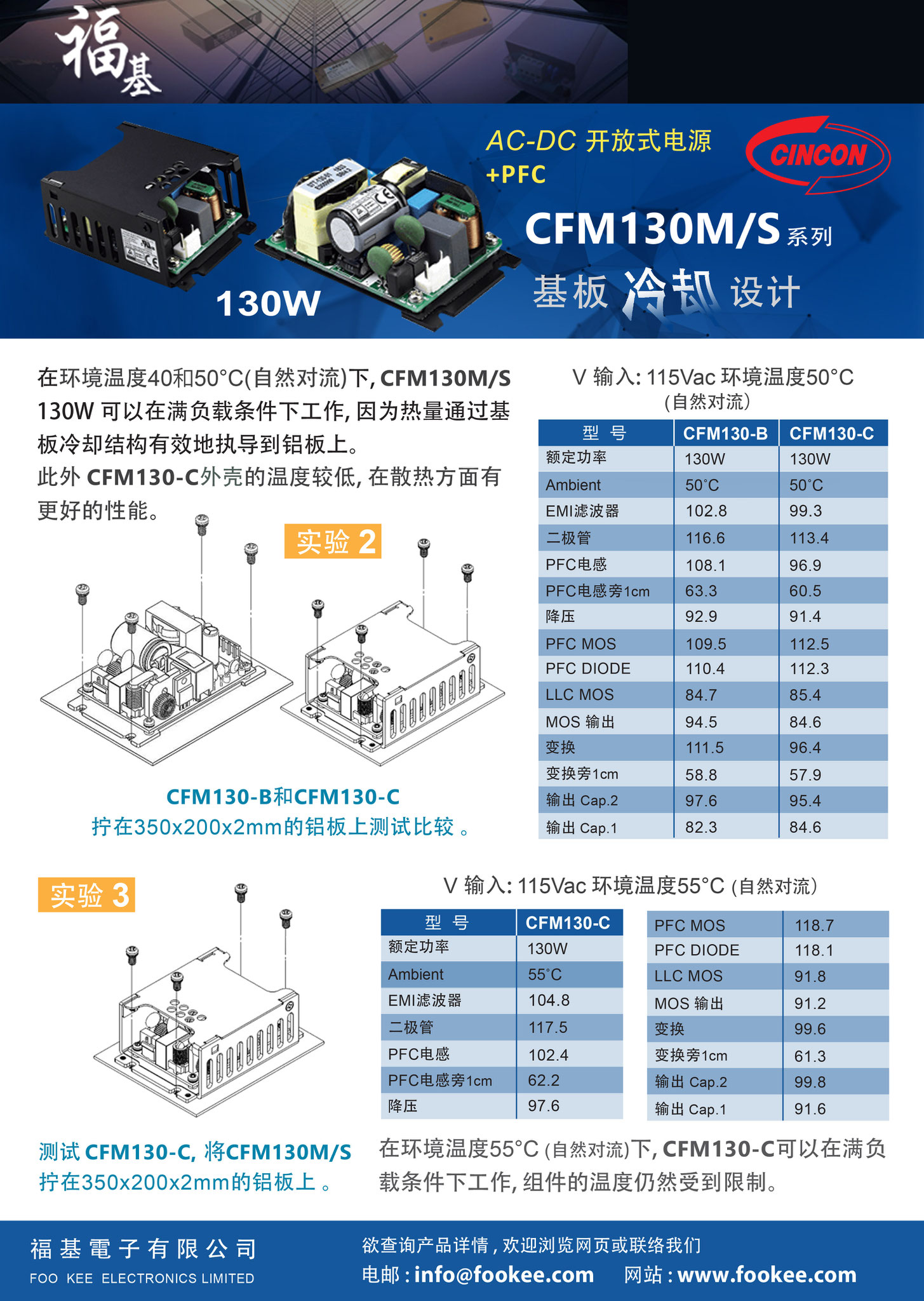

基板冷却设计
2 x 3” 开放式紧凑型
100W自然对流
130W风扇冷却
空载损耗 <150Mw
工作高度5000m
符合IEC/EN/UL 60601-1 2 MOPP, IEC/EN60335-1
安规符合: IEC/EN/UL 62368-1
EMI 安规符合 Class I & Class II
参考连结 >
| 型 号 | 输入电压 (VAC) | 输出电压 (A) | 输出电流 (A) | 效率(%) | 尺寸(mm) |
| CFM130S120 |
80~264 |
12 | 10.8 | 93 |
76.20x50.80x30.50 B: 91.40 x 50.80 x 33.00 C: 91.40 x 64.00 x 34.50 |
| CFM130S180 | 18 | 7.2 | 93 | ||
| CFM130S190 | 19 | 6.8 | 93 | ||
| CFM130S240 | 24 | 5.4 | 93 | ||
| CFM130S360 | 36 | 3.6 | 94 | ||
| CFM130S480 | 48 | 2.7 | 94 | ||
| CFM130S120-B | 80~264 | 12 | 10.8 | 93 | |
| CFM130S180-B | 18 | 7.2 | 93 | ||
| CFM130S190-B | 19 | 6.8 | 93 | ||
| CFM130S240-B | 24 | 5.4 | 93 | ||
| CFM130S360-B | 36 | 3.6 | 94 | ||
| CFM130S480-B | 48 | 2.7 | 94 | ||
| CFM130S120-C | 80~264 | 12 | 10.8 | 93 | |
| CFM130S180-C | 18 | 7.2 | 93 | ||
| CFM130S190-C | 19 | 6.8 | 93 | ||
| CFM130S240-C | 24 | 5.4 | 93 | ||
| CFM130S360-C | 36 | 3.6 | 94 | ||
| CFM130S480-C | 48 | 2.7 | 94 |
