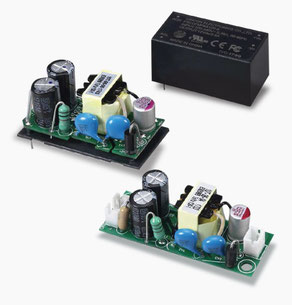

AC-DC开放式电源 6W AC/DC Power Supply > ITE Open Frame 6W
CFM06S系列
系 列 >
产品类别 >
输入电压 >
输出电压 >
输出功率
>
特 性 >
CFM06S
AC-DC开放式电源
90-264VAC
3.3, 5, 9, 12, 15, 24V
6W
90-264VAC输入
效率高达81%
持续性短路保护
空载损耗<75mW
过压保护
Class ll
符合EN55032 Class B, CIRSS/FCC Class B
符合IEC62368-1, UL62368-1, EN62368-1
符合EN61558(60335)
参考连结 >
| 型 号 | 输入电压 (V) | 输出电压 (V) | 输出电流 (A) | 效率(%) | 尺寸(mm) |
| CFM06S033 | AC90-264 | 3.3 | 1.5 | 75 |
39.50x19.40x18.30 带T : 49.53x18.00x17.50 带E : 41.10x21.00x20.00 |
| CFM06S050 | 5 | 1.2 | 78 | ||
| CFM06S090 | 9 | 0.67 | 81 | ||
| CFM06S120 | 12 | 0.5 | 81 | ||
| CFM06S150 | 15 | 0.4 | 81 | ||
| CFM06S240 | 24 | 0.25 | 83 | ||
| CFM06S033-T | 3.3 | 1.5 | 75 | ||
| CFM06S050-T | 5 | 1.2 | 78 | ||
| CFM06S090-T | 9 | 0.67 | 81 | ||
| CFM06S120-T | 12 | 0.5 | 81 | ||
| CFM06S150-T | 15 | 0.4 | 81 | ||
| CFM06S240-T | 24 | 0.25 | 83 | ||
| CFM06S033-E | 3.3 | 1.5 | 75 | ||
| CFM06S050-E | 5 | 1.2 | 78 | ||
| CFM06S090-E | 9 | 0.67 | 81 | ||
| CFM06S120-E | 12 | 0.5 | 81 | ||
| CFM06S150-E | 15 | 0.4 | 81 | ||
| CFM06S240-E | 24 | 0.25 | 83 |
